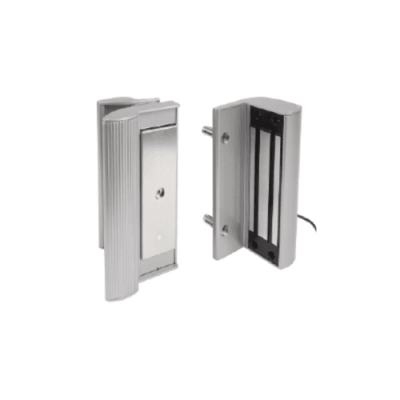

Surface mounted magnetic lock with integrated handles. For square posts and gate profiles of 40 mm to 80 mm, 600 kg pulling force in Silver with 3006PULL handle

Product specifications Print

ADDITIONAL INFORMATION
Aluminium powder coated housing with integrated design handles.

No need for welding as you simply need to drill 7 holes. The Quick-Fix enables fast and strong fixing by simply screwing on the lock. Specifically designed for outside use with a two-layer, protective coating.

Guaranteed holding force tested on every magnetic lock
500h salt spray resistant! SGS certified (ISO 9227)
Tested according to ISO 9227
Special two-layer protective coating developed for outdoor use
Anti-residual magnetism kick-off system
Raised edge on the magnet housing makes it impossible to put a crowbar between the magnet and the armature plate
Fail open
Fast and easy fixing by means of 5 holes with Quick-Fix
Voltage: 12V / 24V DC
MAG6000: Minimal pulling force: 6000N (600 kg)
Current MAG6000: 460 mA /12 V or 230 mA / 24 V

Warranty

• #Basic warranty##1 Year#

Documentation

• Manual (PDF) Download
