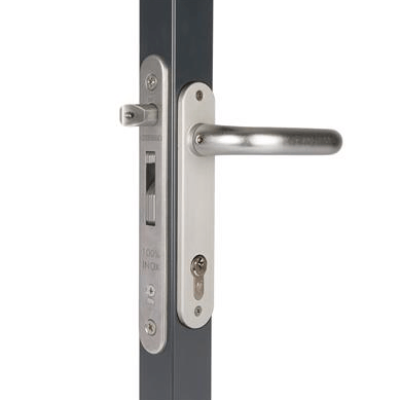

Insert lock with 20 mm backset for profiles of 40 mm or more

Product specifications Print

Lock mechanism with cover plate against dirt penetration
Patented "Click-It" system makes thread tapping unnecessary
Continuous adjustment of the daybolt up to 10 mm without dismounting the lock box
Key-operated self-latching bolt
Mechanism, hook, frontplate, latchbolt: stainless steel
Easy left or right changing of the self-latching daybolt
Throw of the hook: 21 mm
The center distance between the cylinder and the handle: 92 mm
Optional: cover shield for handle & cylinder holes in aluminium, polyamide or stainless steel
Handles to be ordered separately
Compatible with all Europrofile cylinders
UNIWING-compatible

Documentation

• Manual (PDF) Download
