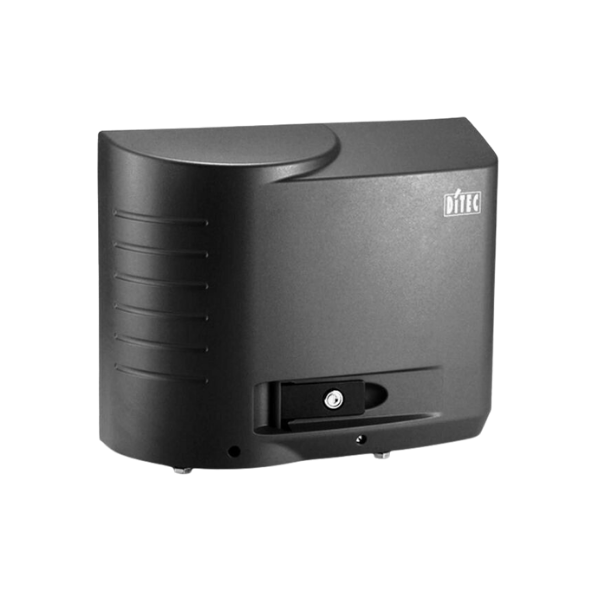

Ditec Automation for sliding gates up to 1800 Kg for intensive use

Product specifications Print

Strong and sturdy for commercial and industrial applications, they can move gates of up to 20 m wide, weighing up to 1800 kg. The best choice for heavy-duty use, available in four different versions: 3 single phase and one three-phase. Versions with control panel integrated in the cabinet and varied limit switch options (rotary, lever-operated, magnetic) are also available.

For sliding gates up to 1800 Kg. Ideal for intensive use.

RELIABLE and STURDY

-lubricating grease suitable for temperatures ranging from -35°C to +55°C
-high-reliability control panels with sturdy contacts
-irreversible geared motor to avoid installation of electro-mechanical locks
-safety-Test function
-electric brake and electronic clutch to guarantee irreversibility and precise stopping points
-key-protected handle release system for manual opening and closing of the gate in the case of a blackout
-vertical levelling screws and horizontal adjustment slots to adjust the automation system to the surface below and the gate rack.
