Assa Abloy

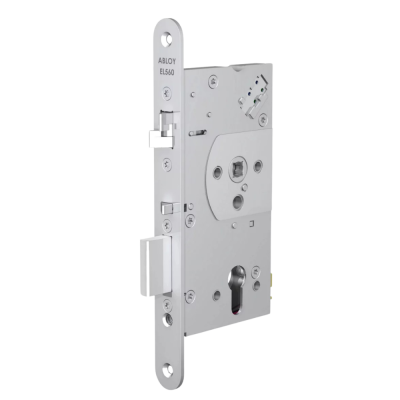

Assa Abloy DIN Euro profile. With hardened deadbolt and anti friction bolt, fail locked and fail unlocked, split spindle 12/24V DC - 100170S.

SKU: ABY-EL560-65 In stock

See your price Enquire now

Key features

Overview of Advantages

• Mechanical automatic locking system

• Non handed, left / right

• Exit side can be changed over *

• Can be changed between fail-unlocked & fail-locked

• Burglary-resistant due to dead bolt with 20 mm throw

• Exit function by inside handle *

• Suitable for fi re doors

• Controllable outside handle *

• Mechanical override with cylinder

• Monitoring functions

• Door status

• Handle down

• Bolt deadlocked

• Bolt in

• Key cylinder used

• Sabotage loop * EL560/EL562

Scope of delivery

• 1 pcs lock case

• Operating manual

Ordered separately

• Strike plate (e.g. EA324)

• Cable EA218 (6m) / EA219 (10m)

• Lead cover EA280/281

• Handle set (e.g. EH006/042) and spindle

• Split spindle EA288/289 with EL560/562

• Cylinder(s) (e.g. CY321T)

Show all product specifications Show Less

Delivery in 1-2 days (Ireland)

30 days Exchange or Refund

Product specifications Print
